optris::PifAiConfig Class Reference

Encapsulates the configuration for a PIF analog input channel. More...

#include <PifChannelConfigs.h>

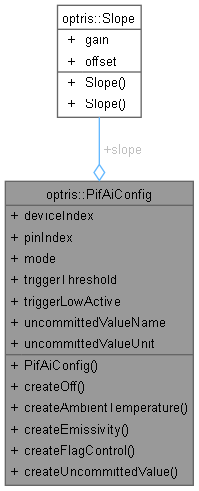

Collaboration diagram for optris::PifAiConfig:

Public Member Functions
OTC_SDK_API	PifAiConfig () noexcept
	Constructor.

Static Public Member Functions
static OTC_SDK_API PifAiConfig	createOff (int deviceIndex, int pinIndex) noexcept
	Creates a configuration for the mode PifAiMode::Off.
static OTC_SDK_API PifAiConfig	createAmbientTemperature (int deviceIndex, int pinIndex, float gain, float offset) noexcept
	Creates a configuration for the mode PifAiMode::AmbientTemperature.
static OTC_SDK_API PifAiConfig	createEmissivity (int deviceIndex, int pinIndex, float gain, float offset) noexcept
	Creates a configuration for the mode PifAiMode::Emissivity.
static OTC_SDK_API PifAiConfig	createFlagControl (int deviceIndex, int pinIndex, float threshold, bool openIfLow) noexcept
	Creates a configuration for the mode PifAiMode::FlagControl.
static OTC_SDK_API PifAiConfig	createUncommittedValue (int deviceIndex, int pinIndex, const std::string &name, const std::string &unit, float gain, float offset) noexcept
	Creates a configuration for the mode PifAiMode::UncommittedValue.

Public Attributes
int	deviceIndex
	Identifies the channel by specifying the PIF device on which its pins are located.
int	pinIndex
	Identifies the channel by locating its pins on the specified PIF device.
PifAiMode	mode
	Mode to be applied to the channel.
Slope	slope
	Defines how input voltages are converted into the desired target values.
float	triggerThreshold
	Trigger threshold for the input voltage.
bool	triggerLowActive
	Indicates whether the trigger will be pulled if the input voltage is below or above the threshold.
std::string	uncommittedValueName
	Name of the uncommitted value.
std::string	uncommittedValueUnit
	Unit of the uncommitted value.

Detailed Description

Encapsulates the configuration for a PIF analog input channel.

For a detailed overview of all available modes and parameters please refer to the corresponding section in the documentation of the configuration file.

Member Function Documentation

createAmbientTemperature()

static OTC_SDK_API PifAiConfig optris::PifAiConfig::createAmbientTemperature ( int deviceIndex, int pinIndex, float gain, float offset )

staticnoexcept

Creates a configuration for the mode PifAiMode::AmbientTemperature.

The input voltage U_in is converted to the ambient temperature t_ambient as follows:

t_ambient = (U_in - offset) / gain

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	gain	for converting the input voltage into the ambient temperature.
[in]	offset	for converting the input voltage into the ambient temperature.

Returns

configuration for the mode PifAiMode::AmbientTemperature.

createEmissivity()

static OTC_SDK_API PifAiConfig optris::PifAiConfig::createEmissivity ( int deviceIndex, int pinIndex, float gain, float offset )

staticnoexcept

Creates a configuration for the mode PifAiMode::Emissivity.

The input voltage U_in is converted to the emissivity e as follows:

e = (U_in - offset) / gain

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	gain	for converting the input voltage into the emissivity.
[in]	offset	for converting the input voltage into the emissivity.

Returns

configuration for the mode PifAiMode::Emissivity.

createFlagControl()

static OTC_SDK_API PifAiConfig optris::PifAiConfig::createFlagControl ( int deviceIndex, int pinIndex, float threshold, bool openIfLow )

staticnoexcept

Creates a configuration for the mode PifAiMode::FlagControl.

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	threshold	voltage level.
[in]	openIfLow	if true, the shutter flag will be opened, if the input voltage is lower than the threshold.

Returns

configuration for the mode PifAiMode::FlagControl.

createOff()

static OTC_SDK_API PifAiConfig optris::PifAiConfig::createOff ( int deviceIndex, int pinIndex )

staticnoexcept

Creates a configuration for the mode PifAiMode::Off.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.

Returns

configuration for the mode PifAiMode::Off.

createUncommittedValue()

static OTC_SDK_API PifAiConfig optris::PifAiConfig::createUncommittedValue ( int deviceIndex, int pinIndex, const std::string & name, const std::string & unit, float gain, float offset )

staticnoexcept

Creates a configuration for the mode PifAiMode::UncommittedValue.

The input voltage U_in is converted to the uncommitted value x as follows:

x = (U_in - offset) / gain

When ever U_in changes the SDK will trigger the callback IRImagerClient::onPifUncommittedValue().

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	name	of the uncommitted value.
[in]	unit	of the uncommitted value.
[in]	gain	for converting the input voltage into the emissivity.
[in]	offset	for converting the input voltage into the emissivity.

Returns

configuration for the mode PifAiMode::UncommittedValue.

---

The documentation for this class was generated from the following file:

• PifChannelConfigs.h
