optris::PifDoConfig Struct Reference

Encapsulates the configuration for a PIF digital output channel. More...

#include <PifChannelConfigs.h>

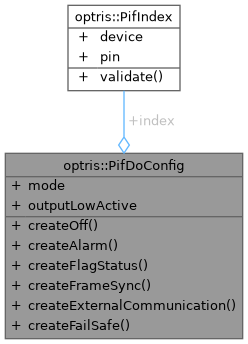

Collaboration diagram for optris::PifDoConfig:

Static Public Member Functions
static OTC_SDK_API PifDoConfig	createOff (int deviceIndex, int pinIndex) noexcept
	Creates a configuration for the mode PifDoMode::Off.
static OTC_SDK_API PifDoConfig	createAlarm (int deviceIndex, int pinIndex, bool lowIfActive) noexcept
	Creates a configuration for the mode PifDoMode::Alarm.
static OTC_SDK_API PifDoConfig	createFlagStatus (int deviceIndex, int pinIndex, bool lowIfOpen) noexcept
	Creates a configuration for the mode PifDoMode::FlagStatus.
static OTC_SDK_API PifDoConfig	createFrameSync (int deviceIndex, int pinIndex) noexcept
	Create a configuration for the mode PifDoMode::FrameSync.
static OTC_SDK_API PifDoConfig	createExternalCommunication (int deviceIndex, int pinIndex) noexcept
	Creates a configuration for the mode PifDoMode::ExternalCommunication.
static OTC_SDK_API PifDoConfig	createFailSafe (int deviceIndex, int pinIndex) noexcept
	Creates a configuration for the mode PifDoMode::FailSafe.

Public Attributes
PifIndex	index = {0, 0}
	Identifies the channel by the indices of its pin and the PIF device on which it is located.
PifDoMode	mode = PifDoMode::Off
	Mode to be applied to the channel.
bool	outputLowActive = true
	Indicates if the output is low active.

Detailed Description

Encapsulates the configuration for a PIF digital output channel.

For a detailed overview of all available modes and parameters please refer to the corresponding section in the documentation of the configuration file.

Member Function Documentation

createAlarm()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createAlarm ( int  deviceIndex, int  pinIndex, bool  lowIfActive  )

staticnoexcept

Creates a configuration for the mode PifDoMode::Alarm.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	lowIfActive	if true, a low signal will be output, if the alarm is active.

Returns

configuration for the mode PifDoMode::Alarm.

createExternalCommunication()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createExternalCommunication ( int  deviceIndex, int  pinIndex  )

staticnoexcept

Creates a configuration for the mode PifDoMode::ExternalCommunication.

When set to external communication the output value of the channel can be set with ProcessInterface::setDoValue().

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.

Returns

configuration for the mode PifDoMode::ExternalCommunication.

createFailSafe()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createFailSafe ( int  deviceIndex, int  pinIndex  )

staticnoexcept

Creates a configuration for the mode PifDoMode::FailSafe.

Refer to the Fail Safe chapter for more details.

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.

Returns

configuration for the mode PifDoMode::FailSafe.

createFlagStatus()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createFlagStatus ( int  deviceIndex, int  pinIndex, bool  lowIfOpen  )

staticnoexcept

Creates a configuration for the mode PifDoMode::FlagStatus.

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.
[in]	lowIfOpen	if true, a low signal will be output, if the flag is open.

Returns

configuration for the mode PifDoMode::FlagStatus.

createFrameSync()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createFrameSync ( int  deviceIndex, int  pinIndex  )

staticnoexcept

Create a configuration for the mode PifDoMode::FrameSync.

Attention

This mode is unique and can only be applied once for all channels.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.

Returns

configuration for the mode PifDoMode::FrameSync.

createOff()

static OTC_SDK_API PifDoConfig optris::PifDoConfig::createOff ( int  deviceIndex, int  pinIndex  )

staticnoexcept

Creates a configuration for the mode PifDoMode::Off.

Parameters

[in]	deviceIndex	identifying the channel.
[in]	pinIndex	identifying the channel.

Returns

configuration for the mode PifDoMode::Off.

---

The documentation for this struct was generated from the following file:

• PifChannelConfigs.h
