Holds the SDK settings found in the configuration file. More...

#include <IRImagerConfig.h>

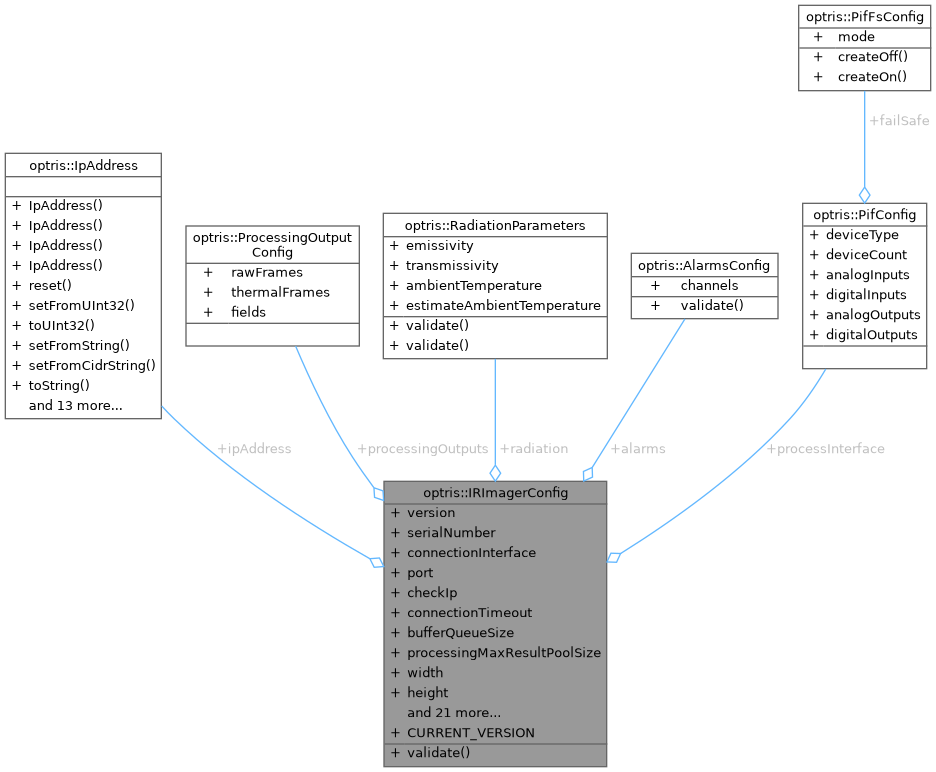

Collaboration diagram for optris::IRImagerConfig:

Static Public Member Functions
static OTC_SDK_API void	validate (IRImagerConfig &config)
	Validates the configuration settings.

Public Attributes
int	version = CURRENT_VERSION
	Version of the configuration file.

unsigned long	serialNumber = 0
	Serial number of the device.

std::string	connectionInterface = "usb"
	Interface used to connect to the device (USB, Ethernet).

IpAddress	ipAddress = IpAddress{192, 168, 0, 101}
	IP address of the device.

unsigned short	port = 50101
	Local UDP port to which the device sends data to.

bool	checkIp = true
	Flag indicating whether to only process UDP packages from the IP address specified by the ipAddress member variable.

int	connectionTimeout = 10
	Specifies the time in seconds that has to elapse without no new frame received until an connection timeout occurs.

unsigned short	bufferQueueSize = 5
	Specifies the number of buffers that the subsystems receiving the raw frame data should use (DirectShow, V4L2, etc.).

ProcessingOutputConfig	processingOutputs
	Specifies which outputs should be computed and provided by the SDK.

unsigned int	processingMaxResultPoolSize = 10
	Sets the maximum number of processing results that are pooled for reuse to avoid unnecessary allocations.

int	width = 0
	Width in pixels of the output frame.

int	height = 0
	Height in pixels of the output frame.

int	framerate = 0
	Output framerate in Hz.

float	subsampledFramerate = -1.F
	Subsampled output framerate.

int	fieldOfView = 0
	Field of view of the optics in degree.

std::string	opticsText
	Optional text further specifying the used optics.

bool	enableSoSCorrection = true
	Use Size of Source Correction if available in calibration data.

RdcMode	rdcMode = RdcMode::Normal
	Mode of radial distortion correction (RDC).

int	minTemperature = 0
	Lower limit of the desired temperature range in °C.

int	maxTemperature = 0
	Upper limit of the desired temperature range in °C.

bool	enableExtendedTemperatureRange = false
	Extends the chosen temperature range if possible.

bool	enableHighPrecisionTemperature = true
	Use high precision temperatures if available.

bool	autoFlag = true
	Enable the automatic triggering of flag cycles.

float	minInterval = 12.F
	Minimum time in seconds that has to pass before a new flag cycle can be triggered.

float	maxInterval = 0.F
	Maximum time in seconds that can pass before a new flag cycle is forced.

ChipHeatingMode	chipHeatingMode = ChipHeatingMode::Floating
	Specified how and if the sensor chip is beeing heated.

float	chipHeatingTemperature = 40.F
	Temperature in °C for the fixed chipHeatingMode. The provided value is clamped to [20, 55] °C.

float	focusMotorPosition = -1.F
	Position of the focus motor in % ([0, 100]).

RadiationParameters	radiation
	Radiation parameters for the overall thermal frame.

bool	enableMultiThreading = false
	Activate multithreading for postprocessing.

bool	failSafeFlagTimeouts = true
	Indicates whether a flag timeout that caused the failure of a flag cycle should trigger the fail safe.

int	failSafeFlagTimeoutsMaxCycleFailures = 0
	Specifies the number of failed flag cycles to be tolerated before fail safe is triggered due to flag timeouts.

bool	failSafeProcessingChainTimeouts = true
	Indicates whether a failure of the processing chain to reach all of its endpoints (thermal frame and measurement fields) within a given time frame should trigger the fail safe.

AlarmsConfig	alarms
	Alarms configuration.

std::vector< MeasurementFieldConfig >	measurementFields
	Measurement field configuration.

PifConfig	processInterface
	Processing interface configuration.

Static Public Attributes
static constexpr int	CURRENT_VERSION = 3
	Current version of the configuration file.

Detailed Description

Holds the SDK settings found in the configuration file.

Member Function Documentation

◆ validate()

static OTC_SDK_API void optris::IRImagerConfig::validate ( IRImagerConfig & config )

static

Validates the configuration settings.

If a faulty setting can be replaced by a valid default this method will do so automatically and print a log warning message. If no valid default is available a SDKException is throws instead.

Parameters

[in,out] config to validate.

Exceptions

SDKException if configuration contains uncorrectable invalid settings.

Member Data Documentation

◆ autoFlag

bool optris::IRImagerConfig::autoFlag = true

Enable the automatic triggering of flag cycles.

Optris thermal cameras feature an internal shutter flag. It need to be closed periodically for the SDK to compensate for drifting temperature measurements.

If set to true, flag cycles will be automatically triggered when one of the temperatures measured by internal probes changes by more than 0.1 °C.

◆ bufferQueueSize

unsigned short optris::IRImagerConfig::bufferQueueSize = 5

Specifies the number of buffers that the subsystems receiving the raw frame data should use (DirectShow, V4L2, etc.).

This setting has no influence on the size of the buffers. Their size is determined by the used video format.

◆ checkIp

bool optris::IRImagerConfig::checkIp = true

Flag indicating whether to only process UDP packages from the IP address specified by the ipAddress member variable.

Set to true to activate this check or set to false to deactivate it.

◆ connectionInterface

std::string optris::IRImagerConfig::connectionInterface = "usb"

Interface used to connect to the device (USB, Ethernet).

Case insensitive.

◆ connectionTimeout

int optris::IRImagerConfig::connectionTimeout = 10

Specifies the time in seconds that has to elapse without no new frame received until an connection timeout occurs.

If connection timeout is detected the IRImager instance will call the IRImagerClient::onConnectionTimeout() callback.

◆ enableExtendedTemperatureRange

bool optris::IRImagerConfig::enableExtendedTemperatureRange = false

Extends the chosen temperature range if possible.

When extending the temperature range you do not need to change the values for minTemperature and maxTemperature. The range is always specified by the non extended temperatures.

Warning: Extended temperature ranges are intended to help you align the field of view of your camera. The precision of the temperature measurements in this mode may not be within the specification.

◆ enableHighPrecisionTemperature

bool optris::IRImagerConfig::enableHighPrecisionTemperature = true

Use high precision temperatures if available.

If true, high precision temperatures will automatically be used if the device and the chosen temperature range supports them.

◆ enableMultiThreading

bool optris::IRImagerConfig::enableMultiThreading = false

Activate multithreading for postprocessing.

Warning: Experimental setting.

◆ enableSoSCorrection

bool optris::IRImagerConfig::enableSoSCorrection = true

Use Size of Source Correction if available in calibration data.

If true, Size of Source Correction will automatically be used if available in calibration data.

◆ failSafeFlagTimeouts

bool optris::IRImagerConfig::failSafeFlagTimeouts = true

Indicates whether a flag timeout that caused the failure of a flag cycle should trigger the fail safe.

A flag timeout occurs when the shutter flag does not reach its expected state within a given time frame. If this happens, the current flag cycle will be considered to have failed.

◆ failSafeFlagTimeoutsMaxCycleFailures

int optris::IRImagerConfig::failSafeFlagTimeoutsMaxCycleFailures = 0

Specifies the number of failed flag cycles to be tolerated before fail safe is triggered due to flag timeouts.

See also: IRImagerConfig::failSafeTriggerOnFlagTimeout

◆ failSafeProcessingChainTimeouts

bool optris::IRImagerConfig::failSafeProcessingChainTimeouts = true

Indicates whether a failure of the processing chain to reach all of its endpoints (thermal frame and measurement fields) within a given time frame should trigger the fail safe.

If set to false, the fail safe will still be triggered when the processing chain itself crashes or gets stuck.

◆ fieldOfView

int optris::IRImagerConfig::fieldOfView = 0

Field of view of the optics in degree.

If the field of view is set to 0 and the opticsText is empty the SDK will use the first available optics.

◆ focusMotorPosition

float optris::IRImagerConfig::focusMotorPosition = -1.F

Position of the focus motor in % ([0, 100]).

Should be in [0., 100.]. Set to a value less than 0 for the SDK to ignore this setting.

◆ framerate

int optris::IRImagerConfig::framerate = 0

Output framerate in Hz.

If width, height and framerate are all set to 0 the SDK will use the first available video format.

◆ height

int optris::IRImagerConfig::height = 0

Height in pixels of the output frame.

If width, height and framerate are all set to 0 the SDK will use the first available video format.

◆ maxTemperature

int optris::IRImagerConfig::maxTemperature = 0

Upper limit of the desired temperature range in °C.

Always use the temperatures for the not extended range.

If the minimum and maximum temperature are set to 0 the SDK will use the first available temperature range.

◆ minTemperature

int optris::IRImagerConfig::minTemperature = 0

Lower limit of the desired temperature range in °C.

Always use the temperatures for the not extended range.

If the minimum and maximum temperature are set to 0 the SDK will use the first available temperature range.

◆ opticsText

std::string optris::IRImagerConfig::opticsText

Optional text further specifying the used optics.

If the field of view is set to 0 and the opticsText is empty the SDK will use the first available optics.

◆ processingMaxResultPoolSize

unsigned int optris::IRImagerConfig::processingMaxResultPoolSize = 10

Sets the maximum number of processing results that are pooled for reuse to avoid unnecessary allocations.

The processing pipeline reuses the same objects to store its results. This setting specifies the maximum number of these objects that are can exist at the same time. If the client callbacks handling the processing results are too slow, the SDK will start to override already existing results. This effectively results in frame drops.

Buffers are only added as needed.

If set to 0, the maximum pool size will be set to 1.

◆ radiation

RadiationParameters optris::IRImagerConfig::radiation

Radiation parameters for the overall thermal frame.

For the radiation parameters of measurement fields see the MeasurementFieldConfig class.

◆ rdcMode

RdcMode optris::IRImagerConfig::rdcMode = RdcMode::Normal

Mode of radial distortion correction (RDC).

The following modes are available:

Off : Radial distortion correction will be deactivated.
Normal: Radial distortion correction will be done in normal mode.
Wide : Radial distortion correction will be done in wide mode.

This has only an impact if the required parameters are provided by the calibration.

◆ subsampledFramerate

float optris::IRImagerConfig::subsampledFramerate = -1.F

Subsampled output framerate.

The SDK internally reduces the output framerate to this value. This setting has no effect on the device itself, meaning the device will always send frames at the rate specified by the framerate member variable.

Set to a value in [0, framerate] to achieve subsampling or set to a value to less than 0 to deactivate this feature.

◆ width

int optris::IRImagerConfig::width = 0

Width in pixels of the output frame.

If width, height and framerate are all set to 0 the SDK will use the first available video format.

The documentation for this struct was generated from the following file:

IRImagerConfig.h
