optris::MeasurementFieldConfig Struct Reference

Encapsulates the configuration of a measurement field. More...

#include <MeasurementFieldConfig.h>

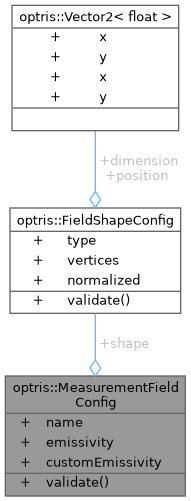

Collaboration diagram for optris::MeasurementFieldConfig:

Static Public Member Functions
static OTC_SDK_API void	validate (MeasurementFieldConfig &config)
	Validates the measurement field configuration.

Public Attributes
std::string	name
	Measurement field name.
FieldShapeConfig	shape
	Defines the shape of the measurement field.
float	emissivity = 1.F
	Field-specific emissivity value in [0.01, 1.1].
bool	customEmissivity = false
	Indicates whether a custom emissivity should be used.

Detailed Description

Encapsulates the configuration of a measurement field.

Member Function Documentation

validate()

static OTC_SDK_API void optris::MeasurementFieldConfig::validate ( MeasurementFieldConfig & config )

static

Validates the measurement field configuration.

Parameters

[in]

config

to validate.

Exceptions

SDKException

if the configuration is invalid.

Member Data Documentation

emissivity

float optris::MeasurementFieldConfig::emissivity = 1.F

Field-specific emissivity value in [0.01, 1.1].

The field customEmissivity needs to be set to true for the specified value to be applied.

---

The documentation for this struct was generated from the following file:

• MeasurementFieldConfig.h
