Alarms

Contents

• Overview
• Alarm Channel
  • Inputs
  • States
  • Outputs
• Creating Channels
• Modifying Channels
• Removing Channels

Overview

The SDK realizes alarms with the help of alarm channels. Each channel continuously monitors whether a given numeric input falls within a set range. Based on this assessment the current state of the channel is determined. If the value, for example, falls outside of the said range the channel transitions to an active alarm state. The resulting state can then be routed to various other components of the SDK.

Note

The SDK features two different range that the input can be checked against:

• the main alarm range and
• an optional pre-alarm range whose state may be superseded by the main alarm.

Alarm Channel

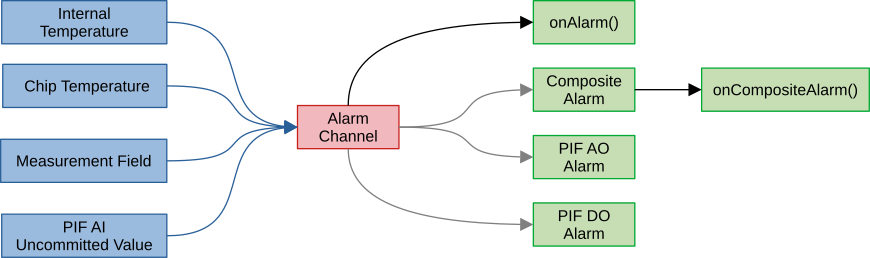

The diagram below outlines the flow of data through an alarm channel:

Inputs and outputs of alarm channels.

Inputs

Each alarm channel can only have a single input at a time (blue arrows). These inputs provide the numerical values that are checked by the channel:

• Internal Temperature
  Provides the internal temperature in degree Celsius measured by an internal probe of the camera. This temperature can also be accessed via the IRImager::getTemperatureBox() method.
• Chip Temperature
  Yields the temperature in degree Celsius of the sensor chip in the camera. This temperature can also be accessed through the IRImager::getTemperatureChip() method.
• Measurement Field
  Provides a statistical data point of a processed measurement field. Currently, you can choose between the following values in degree Celsius
  • mean temperature
  • median temperature
  • minimum temperature
  • maximum temperature
• Uncommitted Value
  An analog input channel of the process interface (PIF) can generate an uncommitted value based on the read input voltage. SDK clients decide the unit of the generated value because they choose how the input voltage is processed.

Availability

The values for the internal and chip temperatures are always available once the device connection is established because they are derived from built-in sensors. Things are, however, different for the other two inputs:

• Measurement Field
  The measurement field whose statistics should be used as an input must be added before the alarm channel is created. If not, the SDK throws an exception. If the measurement field is removed while its associated alarm channel still exists, then the alarm channel will be marked as Orphaned.
• Uncommitted Value
  Unlike with measurement fields the PIF analog input channel providing the uncommitted value does not need to be set to the mode uncommitted value before the alarm channel is created. The alarm channel remains in the alarm state Unknown until it receives the first uncommitted value. If the mode of the associated PIF analog input channel is changed, the SDK will mark the associated alarm channel as Orphaned.

Attention

After an alarm channel transitioned to the state Orphaned the SDK first updates the outputs and then removes the channel automatically.

Update Rate

The update rate of an alarm channel is tied to the frequency with which the inputs provide updates. Internal temperatures, chip temperatures and uncommitted values are updated at the full device framerate listed in the supported cameras section. The updates for measurement fields are influenced by two additional configuration options:

• Subsampled framerate - If the framerate is sub-sampled by the SDK, the measurement fields will be processed at the reduced rate as well as the associated alarm channels.
• Processing outputs - If processing of measurement fields is deactivated, the alarm channels will not receive any further updates.

States

The status of an alarm channel is represented by its state. The available states are defined by the enum AlarmState that has the following values:

• Active
• PreActive
• Clear
• Orphaned
• Disabled
• Unknown

Unknown is the initial state of every newly created alarm channel. It remains in this state until it gets its first update from its input. Every time a new input value is received it reevaluates its current state in the following sequence:

1. Set the state to Disabled, if the overall alarm channel was disabled. Skip all other steps.
2. If the pre-alarm is enabled, check the value against the configured pre-alarm range to get the new channel state. If the value is within [preAlarm.min, preAlarm.max] set the state to Clear and if not to PreAlarm.
3. Check the value against the set alarm range. If the value is not in [alarm.min, alarm.max] escalate the state to Active.

In addition to the state, the SDK determines whether the considered value is below, above or in the (pre-)alarm ranges. For the state PreAlarm this refers to the pre-alarm range and for the state Active to the alarm range. The following figure visualizes the possible AlarmStates and AlarmRangeRelations for a disabled pre-alarm:

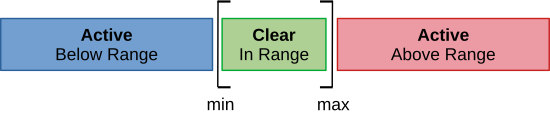

Alarm states and range relation for a disabled pre-alarm.

The SDK notices, if an associated input of an alarm channel was removed (measurement field or uncommitted value). In this case the corresponding alarm channel is marked as Orphaned.

Attention

After all the outputs of a channel were informed about its change, the SDK removes Orphaned channel automatically.

Outputs

Each alarm channel can have an arbitrary number of outputs. Every time its state changes these outputs receive a status update comprised of the following data points:

• The unique channel ID.
• The channel name.
• The channel state.
• The value that triggered this state.
• The relation of that value to the violated (pre-)alarm range.

The available outputs fall into three different categories:

IRImager Client Callback

By default registered IRImagerClients are updated about individual alarm state changes via the onAlarm() callback. Their new AlarmChannelStatus is contained in the AlarmEvent that this callback provides.

Note

The AlarmEvent object is only valid during the callback. If you wish to use it outside the callback, make an explicit copy via an assignment (C++) or use its clone() method (all other languages).

Composite Alarm

The state of multiple alarm channels can be combined into a single composite alarm. The composite alarm has only two states: active or inactive. It is active, if at least one of the alarm channels it is comprised of is in the alarm state Active. It is inactive, if all its alarm channels are not Active or if it does not have any alarm channels.

Note

The state of the composite alarm equals the or-linked Active states of its alarm channels. It is also inactive if no alarm channels are linked to it.

Whenever the composite alarm state changes the callback onCompositeAlarm() of the IRImagerClient is triggered. The provided CompositeAlarmEvent holds the new CompositeAlarmStatus detailing its new state and the alarm channels that caused it.

Whether an alarm channel is part of the composite is determined by its configuration. If the flag partOfComposite in the AlarmChannelConfig or the value in the <part_of_composite> tags in the configuration file is true the alarm channel will contribute to the composite alarm.

PIF Output Channels

The status of an alarm channel can be routed to multiple PIF analog and digital output channels. Likewise, these PIF channels can receive the status of multiple alarm channels.

Attention

The PIF output channels must be configured in the Alarm mode before they process any linked alarm channels.

Note

The configuration of the individual alarm channels specify to which PIF outputs their status is routed.

Unlike measurement fields the PIF and alarm channels do not need to be configured in a specific order. The SDK takes care that the alarm channel status is properly routed.

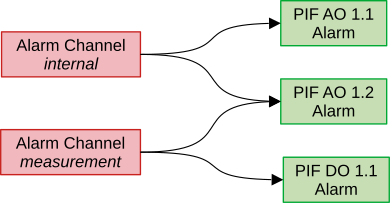

Alarm routing to PIF output channels.

Similar to the composite alarm the PIF channels only consider whether their associated alarm channels are in their Active state. If at least one alarm is Active they output the configured level for active. If no alarm channel is Active or no alarm channel is associated they output the level for inactive.

Note

The PIF output channels determine their output level by or-linking the Active states of their associated alarm channels. If no alarm is linked to them they output the signal for inactive.

Please refer to the documentation of the PIF Alarm mode for more details on the configuration and the resulting output levels.

Creating Channels

There are two ways to create alarm channels:

• configuration file
• IRImager interface at runtime

In both cases the same options are available. The settings exposed in the configuration file are mirrored in the AlarmChannelConfig class that can be used to create alarm channels at runtime. They fall roughly into four different categories:

• metadata, mainly a custom name that does not need to be unique and an enable flag
• input configuration
• (pre-)alarm settings
• output settings

The available inputs are represented by the enum AlarmInput. In the case of InternalTemperature and ChipTemperature no further particulars are required. For the other inputs, however, more details are needed:

• MeasurementField
  You need to specify the field index in order to identify the measurement field that should be associated with the alarm channel. The index can be acquired at runtime via the getIndex() method of the MeasurementField handle of the desired field. In the configuration file the index is given by the order in which the fields are defined. Starting with 0 for the first field defined.

  Additionally, you have to determine which statistical data point should be used. Currently available are the mean, median, minimum and maximum temperatures in degree Celsius.

• UncommittedValue
  In order for the alarm channel to identify the correct uncommitted value, you need to specify which PIF analog input channel generated it by providing its device and pin index.

The pre-alarm can selectively be enabled and has a different range than the primary alarm. The primary alarm range is always checked. This check can only be suppressed by disabling the entire channel.

Note

The values min and max for the (pre-)alarm ranges are included in that range: [min, max].

The output to the SDK clients via the IRImagerClient::onAlarm() callback is always active and does not need any configuration.

The flag partOfComposite lets you decide whether to include this alarm channel in the composite alarm.

You can add a PifIndex that identifies a PIF channel by its device and pin indices to the containers pifAoIndices and pifDoIndices to route the status of this alarm channel to the desired analog and digital outputs.

To create an alarm channel at runtime you first have to create an object of the AlarmChannelConfig class, then set its options as desired and finally pass it to the IRImager::addAlarmChannel() method.

C++

AlarmChannelConfig config;

// Set the desired values

AlarmChannel::ConstShared alarm = imager.addAlarmChannel(config);  // throws an exception on failure

C#

AlarmChannelConfig config;

// Set the desired values

AlarmChannel alarm = imager.addAlarmChannel(config);  // throws an exception on failure

Python

AlarmChannelConfig config()

# Set the desired values

alarm = imager.addAlarmChannel(config)  # raises an error on failure

On success the method returns a pointer/reference to an AlarmChannel object that can be subsequently be used to address the channel.

Note

Alarm channels added through this method are not automatically saved to the configuration file and will be forgotten when disconnecting from the device. Call IRImager::saveConfig() save them permanently.

Alarm channels specified in the configuration file are automatically added when connecting to a device. You can access their handles through the IRImager::getAlarmChannels() method. They are ordered in the container in the way they are listed in the configuration file.

Modifying Channels

When creating a new alarm channel the SDK assigns it a unique ID. This ID can be accessed with the AlarmChannel::getId() method and stays consistent during the lifetime of the channel. Upon removal the ID is released and may be reused later on.

Note

The ID is used internally by the SDK to uniquely identify each alarm channel.

The IRImager interface exposes the updateAlarmChannel() method that allows you to update the channel configuration. But first it is recommended to retrieve the current channel configuration via the getConfig() method of the corresponding AlarmChannel handle. After adjusting its values as desired it can be applied by calling the above mentioned update method.

C++

AlarmChannelConfig config = alarm->getConfig();

// Change the desired options in config

imager.updateAlarmChannel(alarm, config);  // throws an exception on failure

C#

AlarmChannelConfig config = alarm.getConfig();

// Change the desired options in config

imager.updateAlarmChannel(alarm, config);  // throws an exception on failure

Python

config = alarm.getConfig()

# Change the desired options in config

imager.updateAlarmChannel(alarm, config)  # raises an error on failure

Note

As with creating new alarm channels these changes are not automatically saved. Call IRImager::saveConfig() to do so.

Removing Channels

Active alarm channels can be removed with the IRImager::removeAlarmChannel() method that expects the AlarmChannel handle of the alarm channel to removed as argument.

C++

imager.removeAlarmChannel(alarm);  // throws an exception on failure

C#

imager.removeAlarmChannel(alarm);  // throws an exception on failure

Python

imager.removeAlarmChannel(alarm)  # raises an error on failure

Note

There are two important things to know about deleted alarm channels:

• The SDK sets the ID of removed alarm channels to the invalid value of -1. This enables clients to determine whether an alarm handle still refers to an active alarm channel by checking alarm->getId() < 0.
• The SDK does not automatically release the resources the alarm handle is referring to. It just removes all internal references to them. Let the alarm handle fall out of scope to trigger their complete release.

Attention

Since the SDK automatically removes Orphaned alarm channels clients should either monitor the IRImagerClient::onAlarm() callback for channels with an Orphaned state or periodically check the alarm handles for ones that return an ID that is less than 0.
