PifChannelConfigs.h File Reference

Contains classes holding the configuration parameter for the different process interface channels. More...

#include <ostream>
#include <string>
#include "otcsdk/Api.h"
#include "otcsdk/common/Slope.h"
#include "otcsdk/pif/PifProperties.h"

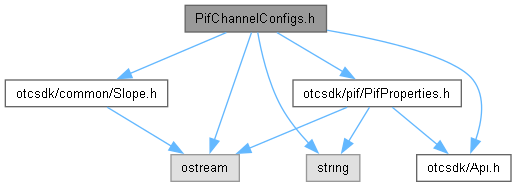

Include dependency graph for PifChannelConfigs.h:

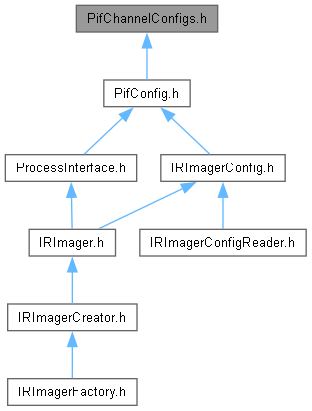

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	optris::PifAiConfig
	Encapsulates the configuration for a PIF analog input channel. More...
class	optris::PifDiConfig
	Encapsulates the configuration for a PIF digital input channel. More...
class	optris::PifAoConfig
	Encapsulates the configuration for a PIF analog output channel. More...
class	optris::PifDoConfig
	Encapsulates the configuration for a PIF digital output channel. More...
class	optris::PifFsConfig
	Encapsulates the configuration for a PIF fail safe channel. More...

Namespaces
namespace	optris
	Main SDK namespace.

Functions
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, const PifAiConfig &config) noexcept
	Output stream operator for PifAiConfig.
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, const PifDiConfig &config) noexcept
	Output stream operator for PifDiConfig.
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, const PifAoConfig &config) noexcept
	Output stream operator for PifAoConfig.
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, const PifDoConfig &config) noexcept
	Output stream operator for PifDoConfig.
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, const PifFsConfig &config) noexcept
	Output stream operator for PifFsConfig.

Detailed Description

Contains classes holding the configuration parameter for the different process interface channels.

Author

Optris GmbH & Co. KG

Date

2025-06-23
