optris::FrameEvent Struct Reference

Event containing the results of the successful processing of a frame. More...

#include <FrameEvent.h>

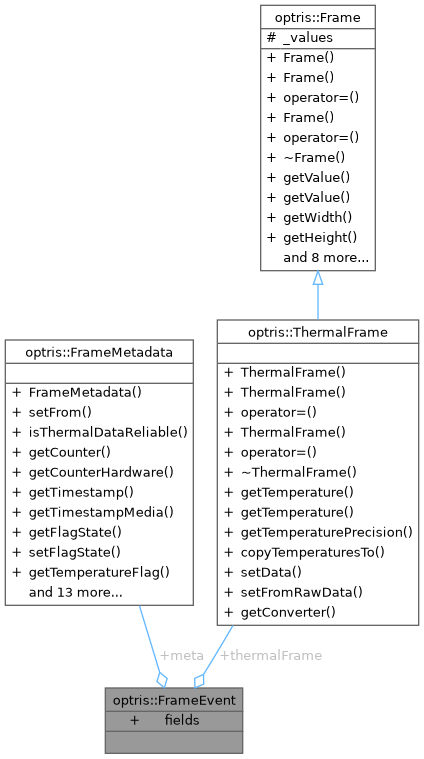

Collaboration diagram for optris::FrameEvent:

Public Attributes
FrameMetadata	meta
	Metadata of the frame.
ThermalFrame	thermalFrame
	Thermal frame.
std::unordered_map< std::int32_t, FieldStatus >	fields
	The results of the measurement field processing.

Detailed Description

Event containing the results of the successful processing of a frame.

Member Data Documentation

fields

std::unordered_map<std::int32_t, FieldStatus> optris::FrameEvent::fields

The results of the measurement field processing.

A status can be accessed via the measurement field ID.

The map will be empty, if ProcessingOutputConfig::fields is set to false.

See also

ProcessingOutputConfig

meta

FrameMetadata optris::FrameEvent::meta

Metadata of the frame.

Is always provided.

thermalFrame

ThermalFrame optris::FrameEvent::thermalFrame

Thermal frame.

The frame will be empty, if ProcessingOutputConfig::thermalFrames is set to false.

See also

ProcessingOutputConfig

---

The documentation for this struct was generated from the following file:

• FrameEvent.h
